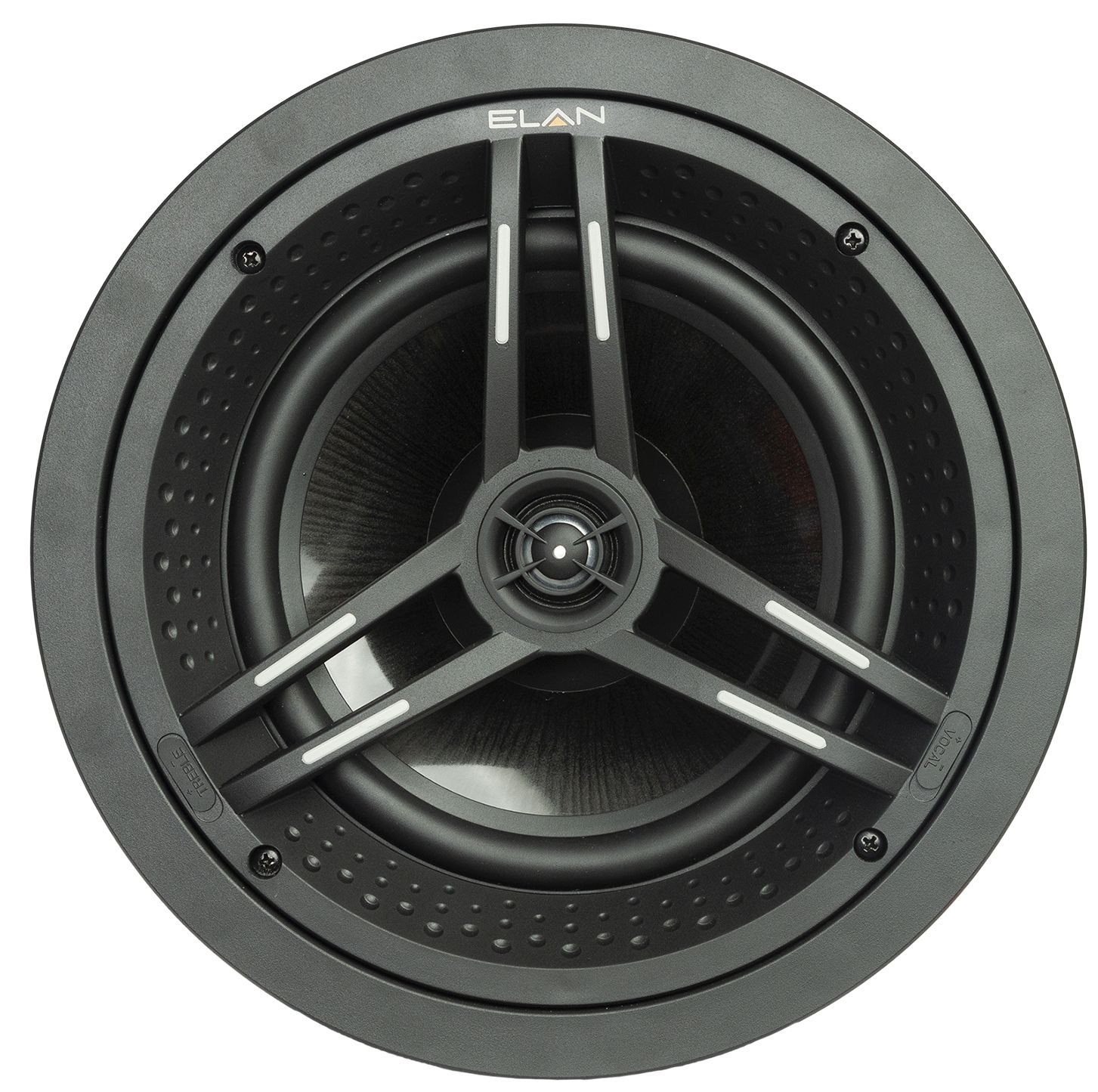

ELAN® 800 Series 8" In-Ceiling Speakers (Pair)
At a Glance
Whether it's high-performance distributed audio or an exceptional home theater experience, the EL-800-IC-8 is the perfect choice for discerning customers. Better clarity, resolution and dynamics are achieved with the graphite-injected polypropylene cone woofer and pivoting 1" aluminum dome tweeter. Increased vocal clarity, enhanced dialogue and adjustment of post-installation tweeter performance are enabled with the front-mounted vocal and tweeter enhancement switches.
Proposition 65 Warning for California Residents
General Specs
| Frequency Response | 48Hz-20kHz |
|---|---|
| Manufacturer Warranty | Limited Lifetime |
| Collection | 800 Series |
| RMS Power Handling (Watts) | 130 |
| Color | Black |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 130 |
| Number of Speakers | 2 |
| Sensitivity | 90 |
| Speaker Type | In-Ceiling Speakers |
| Depth (in.) | 4.65 |
| Height (in.) | 10.8 |
| Width (in.) | 10.8 |
| Woofer Size | 8" |
General
| Length | 13.7 (Inches) |
|---|---|
| Width | 13.1 (Inches) |
| Height | 13.1 (Inches) |
| Weight | 16.68 (Lbs) |
| Unit Of Measure | Pair |
| Woofer Size | 8" / 200mm |
| Woofer Construction | Graphite Injected Polypropylene Cone |
| Tweeter | 1" / 25mm Pivoting Silk Dome |
| Frequency Response | 48Hz-20kHz |
| Impedance | 8 (Ohms) |
| Power Handling | 130 (Watts) |
| Sensitivity | 90 (dB) |
| Timbre | Timbre-Matched to all 800 Series Speakers |
| Dimensions | 10.8" / 275mm Diameter x 4.65" / 118 mm Depth |
| Hole Cutout Dimensions | 9.75" / 248 mm Diameter |
| Mounting Depth | 4.53" / 115mm |
| Warning | WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
ELAN® 800 Series 8" In-Ceiling Speakers (Pair)
Model #: EL-800-IC-8
Available in Store Only
At a Glance
Get to know this product.
Dynamic Room Filling Sound
Low Crossover points and a light-weight graphite injected polypropylene cone woofer that's mounted as close to the surface as possible delivers dynamic sound with the widest dispersion possible
Quick, Responsive Highs
Aluminum dome tweeters are lightweight, strong and respond instantaneously to changes in music or movies
Tilt Tweeter
The tilting tweeter mechanism allows you to direct sound to the listening area and maintains high frequency performance even when the speaker is mounted in less than ideal locations
Vocal and Tweeter Enhancement Switches
Easily adjust for tweeter performance or enhance the dialogue in movies via the Vocal and Tweeter Enhancement Swiches
Thin is In
A thin-bezel magnetic grille ensures a secure fit, pleasing aesthetic and with a one-step paint process, it fits universally into almost any décor
Easy-Grip Tweeter Bridge
We know you do it! Installing speakers above your head requires a sturdy grip point and the ELAN Tweeter bridge ensures you have one. We even protect the tweeter from accidental finger pokes
Dimpled Baffle Design
The dimpled baffle design eliminates annoying echoes and increases dispersion by reducing the focusing action of the concave baffle. The result is crystal-clear room filling sound
Secure Connection
All ELAN speakers feature spring loaded binding posts that provide a secure, worry-free connection in the wall or ceiling
Lifetime Warranty
Feel confident that All ELAN Architectural speakers are backed by a limited lifetime warranty
Graphite-injected polypropylene cone woofer
1" aluminum dome tweeter
Tweeter enhancement switche
